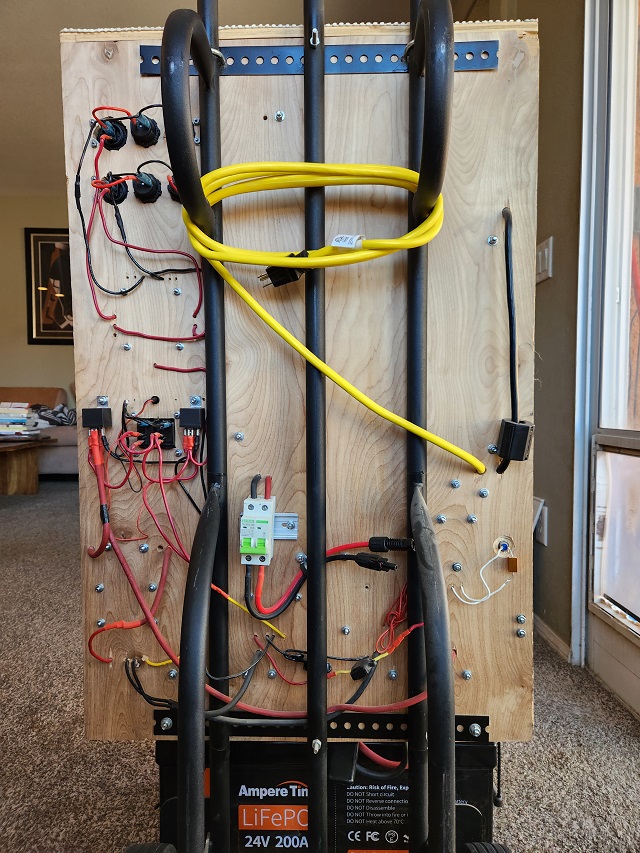

I wanted to build a versatile yet mobile power station that I could use around my house, so I built it on a hand truck. One of the main reasons I built this power station is because I wanted to have backup power that did not rely on fuel.
The system can power AC appliances from the inverter and, at the same time, power USB devices directly from the battery without using the inverter.

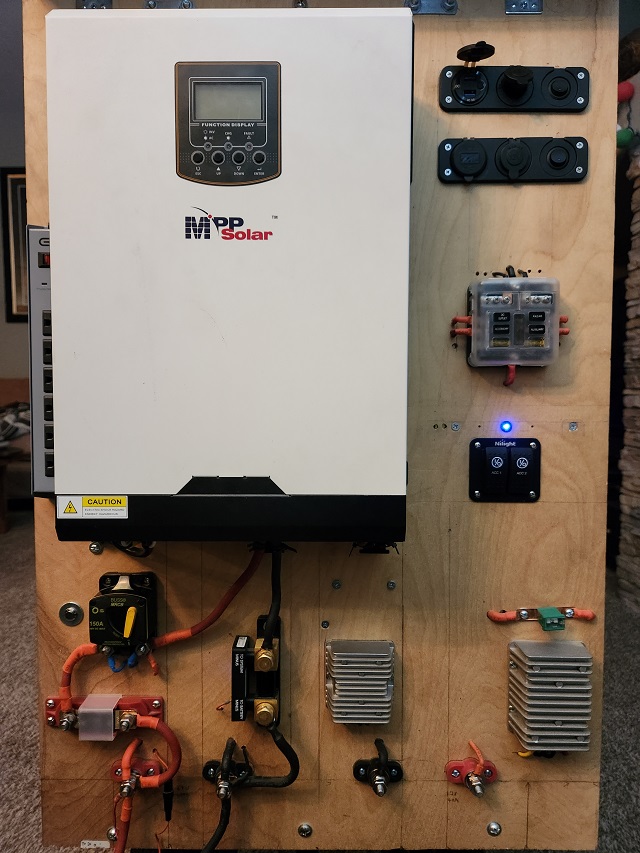

The power station can produce around 8kWh of power on average per day and is based on the MPP Solar PIP LV2424 MSD all-in-one inverter/charger (PDF Manual).
The DC side uses buck converters to convert 24V to 12V DC that powers a USB panel. This lets me power any USB device. This system is connected to 2000 watts of solar panels. It includes two 200AH Ampere Time 24V batteries connected in parallel.

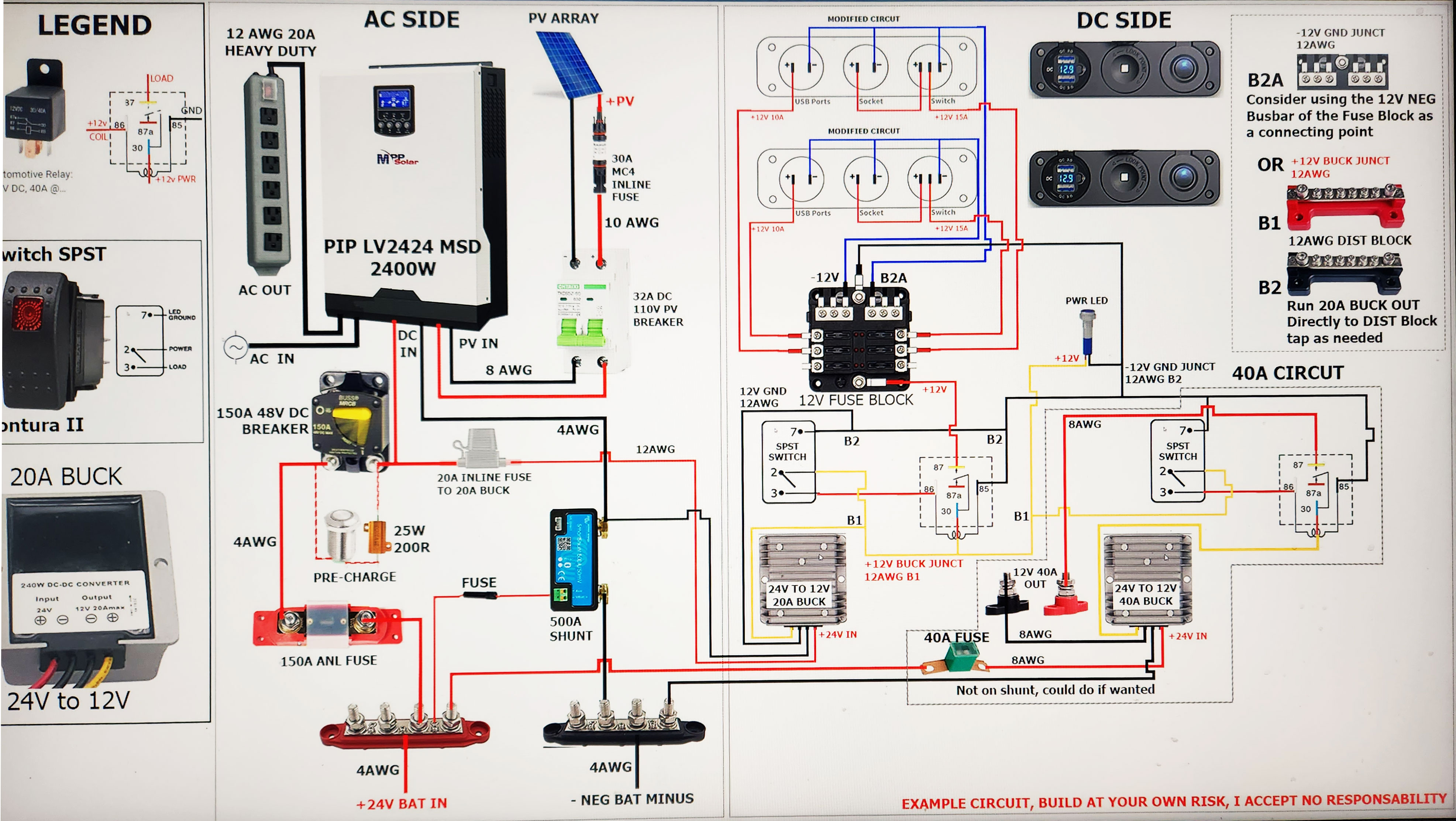

I have include a detailed schematic of the entire system below.
05-25-2023: Added Bus Bars.
07-16-2023: The MPP Solar PIP LV2424 MSD 2.4KW inverter is now $530! I remember paying $750 lol
Parts List (affiliate links)
AC Side (inverter and required components)
- MPP Solar PIP LV2424 MSD 2.4KW Inverter (PDF Manual)*
- LiTime 24V 200AH 5120Wh LiFePO4 Battery *
- Battery Cable Junction Block 5/16" *
- Blue Sea 150A 48V DC Breaker MCRB BUSS - 187 series *
- Battery ON/Off Disconnect Switch 300A (Cheaper Than Breaker)
- 150A ANL fuse *
- 110V DC Breaker, 32A Solar PV *
- 500V DC Breaker, 32A Solar PV (If More Than 110V)
- 10' 4AWG Battery Cable (Includes Lugs and Heat Shrink) *
- 6 Outlet Power Strip, 20A (AC Output) *
- 10-ft 10/3 Heavy Duty Ext. Coord (AC Input) *
- 25W 200 Ohm Aluminum Power Resistor *
- Push Button Switch *
- 50 Feet 10AWG Solar Ext. Cable With MC4 Connectors Installed *
- MC4 30A Solar Inline Fuse *
- MC4 15A Solar Inline Fuse *
- Victron 500A Shunt/Battery Monitor (optional) *
- 9x 250W 60 Cell Solar Panels (SanTan Solar) *
NOTE: Items marked with * are used in the schematic.
NOTE: PV inline fuses and breaker/isolator may differ slightly depending on your solar array configuration.
DC Side Components (only if you want a DC side)
NOTE: You do not need these parts unless you want to run 12 volt appliances without the inverter.
- 10' 8AWG wire (for 40A buck circuit) *
- 2x 10ft' 12AWG SILICONE Wire Kit
- 12 AWG Wire (red) (automotive hookup wire) *
- 12 AWG Wire (black) (automotive hookup wire) *
- ST Blade ATO/ATC Fuse Block *
- Battery Cable Junction Block 5/16" *
- 8 x M4 Post, 12AWG Power Dist. (B1 and B2) *
- 20A 24V DC to 12V DC buck converter *
- 40A 24V DC to 12V DC buck converter *
- 2X Carling On/Off SPST Switch (Red) *
- 5-Pin 30/40A 12V Relays w in-line ATC Fuse Holders (2 Pack) *
- 10AWG Inline Fuse Holder *
- 12V USB Panel with Car Charger Socket *
NOTE: DO NOT EVER USE COPPER-CLAD ALUMINUM (CCA) WIRE!
NOTE: DO NOT BUY Nilight SWITCHES, THEY ARE JUNK!
NOTE: The relay socket can not take 40 amps, wire relay directly.
Questions, comments or suggestions, E-mail me.
